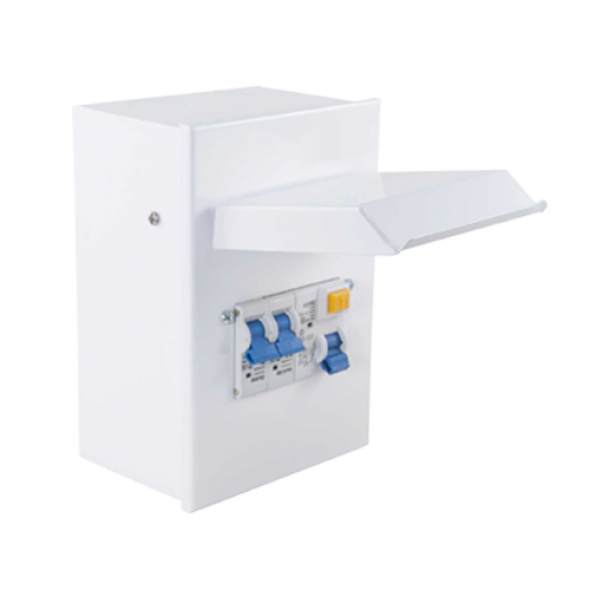

CTI Amendment 3 Garage Consumer Unit
2016 has arrived and so has the latest NICEIC regulation 421.1.201 (Protection against fire caused by electrical equipment)
BS 7671 IET Amendment 3. BS 61439-3. Fully compliant with Amendment 3 to BS 7671:2008
Complete with 1 x 63a RCD, 1 x 6a MCB and 1 x 32a MCB
Technical Specification
All metal enclosure, no external plastic parts
Low smoke and fume paint
Compact enclosure
Raised and removable DIN rail / busbar assembly
Cable entry knockouts on 5 sides, top, bottom, left, right and rear
Mains tails cable entry grommet / gland for supplementary insulation similar to Class II level of protection to mains tails
RoHS Compliant in excess of UK Standards
UKAS certified to BS EN 61439-3
Dimensions : Length 183mm x Width 140mm x Depth 112mm
Please get in touch for more information or advice we are always happy to help
Additional Information
| Manufacturer | CTI |
|---|---|
| Color | No |
| Manufacturer's Suggested Retail Price | No |
