Details

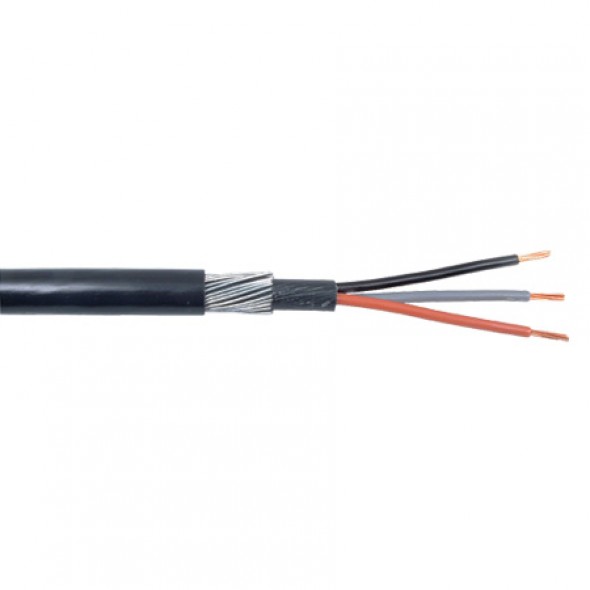

6943X 1.5mm 3 - Core SWA Armoured Cable

Armoured XLPE mains cable to British Standard BS5467 suitable for power networks

Current rating : 23 Amp
6943XL 1.5mm 3 - Core SWA Cable
Multi-Core XLPE insulated/PVC/SWA/PVC sheathed to BS5467 600/1000V
Conductors: Plain annealed stranded copper
Insulation: XLPE (Cross linked polyethylene)
Core identification: 2 core (Brown & Blue), 3 core (Brown, Black & Grey), 4 core (Brown, Black, Grey & Blue). 5 core & above - white cores with black numbers
Bedding: PVC (Polyvinyl-Chloride)
Armour/Protection: SWA (Single wire armour)
Sheath/Jacket: PVC (Polyvinyl-Chloride)
Colour: Black
Voltage: 600/1000v
Operating temperature: Maximum 90^°C, minimum bending 0^°C
Standard: BS5467: Electric cables. Thermosetting insulated, armoured cables for voltages of 600/1000V and 1900/3300V
Designed for use in mains supply electricity. These cables are provided with mechanical protection are therefore suitable for external use and direct burial.
