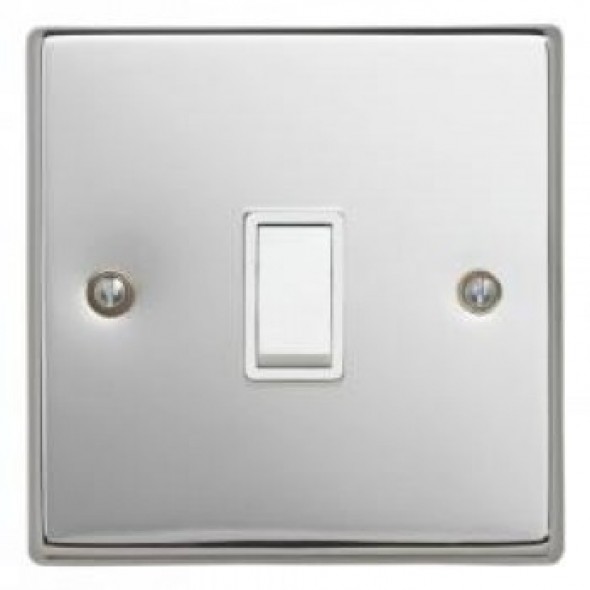

1 Gang 2 Way Switch Polished Chrome
The Iconic slimline range products have a square contemporary profile - when installed the metal plate has a distinct outline which is ideal for the modern interior.
Optional features include metal rockers and a range of different colours(If these are required please call the office for a price and availability).
- 4.5mm depth slimline plate
- Square contemporary profile
- Available in 4 finishes
- 25 year guarantee
Spec as follows ;
- Face plate finish: polished chrome
- Insert colour: white
- Number of outlets: 1
- Rocker finish: white moulded
- Switched: Yes
- With indicator lamp: No
- Associated standards: BS 1363-2
- Ambient operating temperature: -5 to 40°C (24hour average not exceeding 25°C)
- Base material: Thermoset
- Face plate material: stainless steel
- Fixing screws: 2 x M3.5
- IP rating: IP2X
- Maximum installation altitude: 2000m
- Minimum switch contact gap: 3 mm
- Minimum wall box depth: 25
- Nature of supply: AC
- Operational testing: 30000
- Rated current: 13A
- Rated frequency: 50-60Hz
- Rated voltage: 220-250V
- Switched poles: 2 pole
- Terminal capacity: 3 x 2.5mm 3 x 4.0mm 2 x 6.0mm
These are plate switches, fully rated for fluorescent or inductive loads. BS 3676. (X rated for use with fluorescent and inductive loads as well as standard). We stock a vast range of both traditional and contemporary electric switches and sockets from Contactum one of the most well known brands in the UK. This range of 10A switches are polished chrome with white inserts.
Additional Information
Manufacturer | Contactum |
---|---|
Color | No |
Manufacturer's Suggested Retail Price | No |
