CY Cable
Electrical Trader are based on the Deeside Industrial Estate near Chester. We sell a large range of CY cable which can be cut to length with fast, free delivery on orders over £100. Cheapest prices online with pick ups welcome. CY Cable is also known as Braided PVC and CY Flex.
Read More
What is CY Cable?
Those looking for reduced-interference data transmission specify CY Cable. As a member of the control cable family, CY Cable is a flexible multi-core cable with class 5 flexible plain copper conductors, PVC insulation, a PETP (Polyethylene Terephthalate) separator, a tinned copper wire braid and a grey PVC sheath that is generally manufactured to BS6500. What makes CY cable particularly useful is the layer of tinned copper wire braid, which provides a screen to protect the CY Cable against external electromagnetic influences. A Low Smoke Zero Halogen (LS0H) version of CY Cable is also manufactured. The materials in LS0H CY Cable differ slightly – XLPE (Cross-Linked Polyethylene) insulation and a LS0H sheath are used in place of the PVC layers.

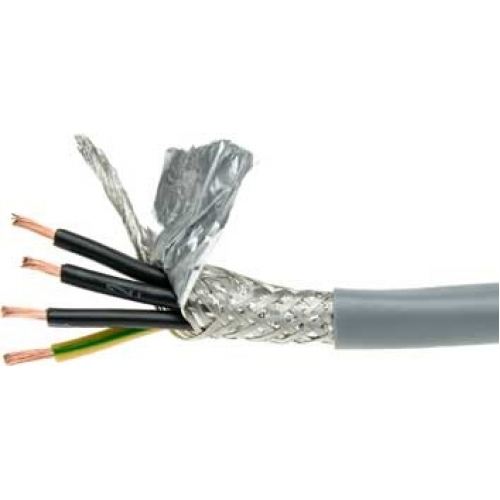

How are CY Cable and CY Cable LSOH constructed?
Conductor : Class 5 flexible plain copper conductors to BS EN 60228:2005 (previously BS6360)
Insulation : CY: PVC (Polyvinyl Chloride) Type YI2 CY LS0H: HF (Halogen Free) to VDE0207-HI2
Separator : Plastic core wrap
Screen : LiYCY: TCWB (Tinned Copper Wire Braid) STCY: Aluminium foil and braid
Sheath : CY: PVC (Polyvinyl Chloride) RAL 7001 acc. to VDE 0207 CY LS0H: RAL 7001 acc to VDE0207-HM2
By what other names is CY Cable known?
CY Cable is also known as Instrumentation Cable, CY Flex, CY Control Flex, Robotic Cable, Copper Screened Control Cable, Shielded Control Cable, Motor Cable and Screened Cable.
Which industries use CY Cable?
The Flexible CY Cable is used across a wide range of industries including building and construction, rail and transport infrastructure, and automation and process control. CY Screened Multicore Cable is designed for use as interconnecting cable – for measuring, controlling or regulation – in signal and control equipment. Shielded CY Control Cable is found frequently on assembly and production lines, conveyors, in computer units and machine tool manufacture – especially in situations where reduced-interference signal and data transmission is vital. Its flexible properties make it the ideal choice for both linking static and mobile equipment, and fixed installations. With the right protection (such as keeping it out of direct sunlight), this Shielded Flex is suitable for outdoor installations. It is mostly used, however, in dry or moist indoor environments and in conditions of medium mechanical stress.
When would I need to use Low Smoke Zero Halogen (LS0H) CY Cable?
With its LS0H sheath, LS0H CY Cable is recommended for installation in public areas – such as schools, hospitals and airports. When exposed to fire, the Shielded Flex’s LS0H sheath emits low levels of smoke and non-toxic levels of halogen gas (typically under 0.5% HCl emission). LS0H may also be referred to as LSHF (Low Smoke Halogen Free), 0HLS (Zero Halogen Low Smoke), LSZH (Low Smoke Zero Halogen) or HFFR (Halogen Free Flame Retardant).
When should I use YY or SY Control Cable?
If interference-free data transmission is your top priority then CY Cable Flex is the most suitable control cable. If you require more robust mechanical protection, however, SY Control Cable – with its galvanised steel braid – is ideal. If neither characteristic is essential, however, Flexible YY Control Cable is recommended.
Standards : Generally to BS6500
Sheath Colour : Grey
Voltage Rating : 300/500V
Temperature Rating: CY Cable : Fixed: -35°C to +70°C Flexing: -15°C to +70°C ;
CY Cable LS0H: Fixed: -35°C to +85°C Flexing: -5°C to +85°C
Minimum Bending Radius : 10 x overall diameter

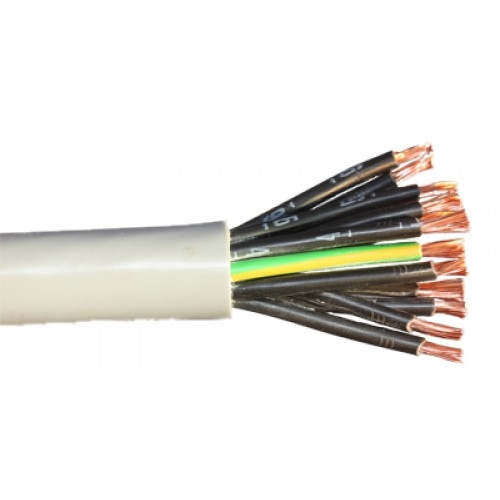

Core Identification : Black with White numbers. (3 cores and above to include Green/Yellow). Coloured cores available.
