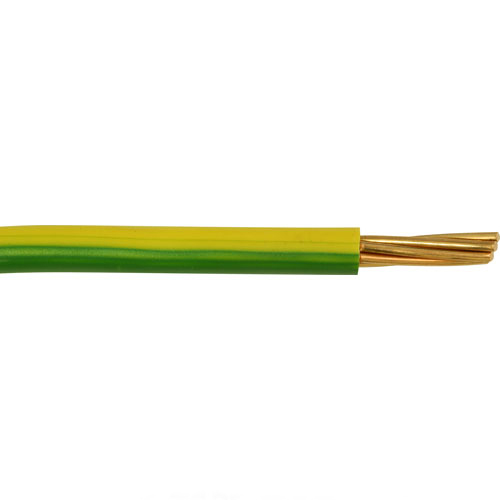

Electrical Trader are based on the Deeside Industrial Estate near Chester. We sell earth cable commonly known as single core green and yellow cable, 6491X cable or earth bonding cable. Our cable can be cut to length with fast, free delivery on orders over £100. Cheapest online prices. Pick ups are welcome. If you cannot see what cable you are after please contact our cable sales team on 01244 288138.
Electrical Trader stock large quantities of Earth Cable from 1.5mm to 95mm if you cannot see the earth cable you are after contact the office on 01244 288138 to speak to our earth cable sales team.
Earth Cable Application : 6491X Cable H07V-R/H07V-U to BS6004 is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances and apparatus.
Earth Cable Standards: BS6004, BASEC approved*
Earth Cable Conductor : H07V-R: Class 2 stranded plain copper conductors to BS EN 60228:2005 (previously BS6360) H07V-U: Class 1 solid plain copper conductor to BS EN 60228:2005 (previously BS6360)
Earth Cable Insulation: PVC (Polyvinyl Chloride) Type TI1 to BS7655
Earth Cable Insulation Colour: Red, Black, Blue, Yellow, Brown, White, Green/Yellow, Grey
Earth Cable Voltage Rating: 450/750V
Earth Cable Temperature Rating: 0°C to +70°C
Earth Cable Minimum Bending Radius : Up to 10mm²: 3 x overall diameter, 10mm² to 25mm²:, 4 x overall diameter Above 25mm²: 5 x overall diameter
Note: *Sizes up to and including 150mm² are BASEC approved. For sizes 185mm² and above please call for more information.
