Details

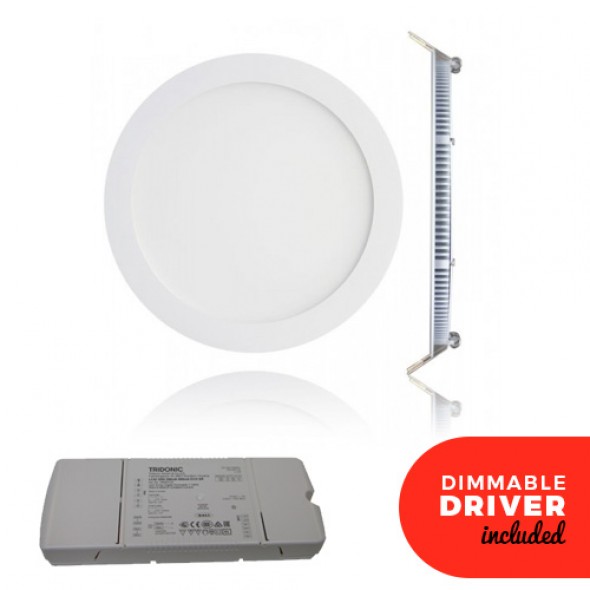

4 Inch Dimmable LED Panel Downlight White 6w

The Ultra Thin Dimmable LED Panel Light range is designed as an alternative to Fluorescent PL light fittings with the added benefits of energy savings, enhanced environmental credentials and being far smaller in size for ease of installation. Consuming about 50% of the energy than a Fluorescent light fitting, the Ultra Thin LED Panel Light range offers a newly installed fitting option that will achieve great energy savings and product longevity. 3 year guarentee included.

The 6W Ultra Thin Dimmabel LED Panel Light comprises of 60 x LED SMD chips, Fixed fitting, 240v mains energy supply and a 40,000 life expectancy. The 6W Ultra Thin LED Panel Light has a 120 degree beam angle. This product also comes with the required Dimmable LED driver included in the price.

Model: SPW6WD
IP Rating: IP20
Voltage: 85-265V
Wattage: 6W
Colour Temperature: 3000K (Warm White) / 4000K (Cool White) / 6000K (Daylight White)
Lumen Output: 930lms
CRI: >80
Guarantee: 3 years
Material: Aluminium & polycarbonate
Front face diameter : 120mm
Cut out size required : 100mm

LED Dimmable Driver Specification

Voltage: 220-240V
AC Voltage range: 198-264V
DC Voltage range: 176-280V
Output Wattage: 35W
Nominal Current Range: 350mA - 900mA
Current: 130-185mA
Maximum Input Power: 41W
Total Harmonic Distortion: <5%
Power Factor: ≥0.98
Efficiency: 87-90%
Stand-by Power: 70-100mW
Dimming Control: Yes, 1-100%
Life Expectancy: 100,000 Hours
5 Year guarantee
IP Rating: IP20
Material: Polycarbonate, white
Working Temp: -25°C - 65°C

Extra Info: Install in vertical or horizontal direction. Totally screw and tool-free installation. Fully SELV Compliant. Dimming Interfaces. DALI Device Type 6. DSI. SWITCHDIM (with memory function). Corridor function

NOTES: Not suitable for Phase-cut dimming (Rotary Switches). 4" / 6W panels are advised to be installed as two panels to one dimmable driver for best results.
