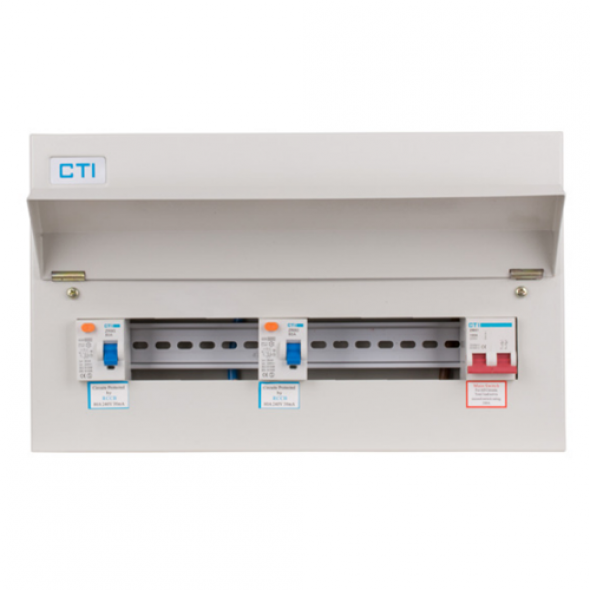

CTI Metal Amendment 3 17th Edition 8 Way Consumer Unit
2016 has arrived and so has the latest NICEIC regulation 421.1.201 (Protection against fire caused by electrical equipment)
BS 7671 IET Amendment 3. BS 61439-3. Fully compliant with Amendment 3 to BS 7671:2008
Includes 1 x 100A Mains Incomer and 2 x 80A RCD's
There are 8 empty ways for 8 MCB's or RCBO's
The metal enclosure comes supplied with a full metal DIN rail and full complement of earth and neutral terminals along with circuit identification labels providing clear understanding of outgoing ways.
Technical Specification
- All metal enclosure, no external plastic parts
- Low smoke and fume paint
- Compact enclosure
- Raised and removable DIN rail / busbar assembly
- Cable entry knockouts on 5 sides, top, bottom, left, right and rear
- Mains tails cable entry grommet / gland for supplementary insulation similar to Class II level of protection to mains tails
- RoHS Compliant in excess of UK Standards
- UKAS certified to BS EN 61439-3
- Dimensions : Length 238mm x Width 323mm x Depth 112mm
Please get in touch for more information or advice we are always happy to help
Additional Information
| Manufacturer | CTI |
|---|---|
| Color | No |
| Manufacturer's Suggested Retail Price | No |
